GCP Secret Manager — Operation Guide¶

Provider: Google Cloud Platform (GCP) Secret Manager Plugin: swarm-external-secrets

This guide walks you through setting up and using GCP Secret Manager as a secrets provider for swarm-external-secrets — from enabling the API all the way to reading live secrets inside a running Docker container.

1. Prerequisites¶

Before you begin, make sure you have:

A Google Cloud account with billing enabled
Docker with Swarm mode available
Go installed (for dependency management)
gcloud CLI installed (covered in Step 5)
Your GCP Project ID handy (e.g., my-project-12345)

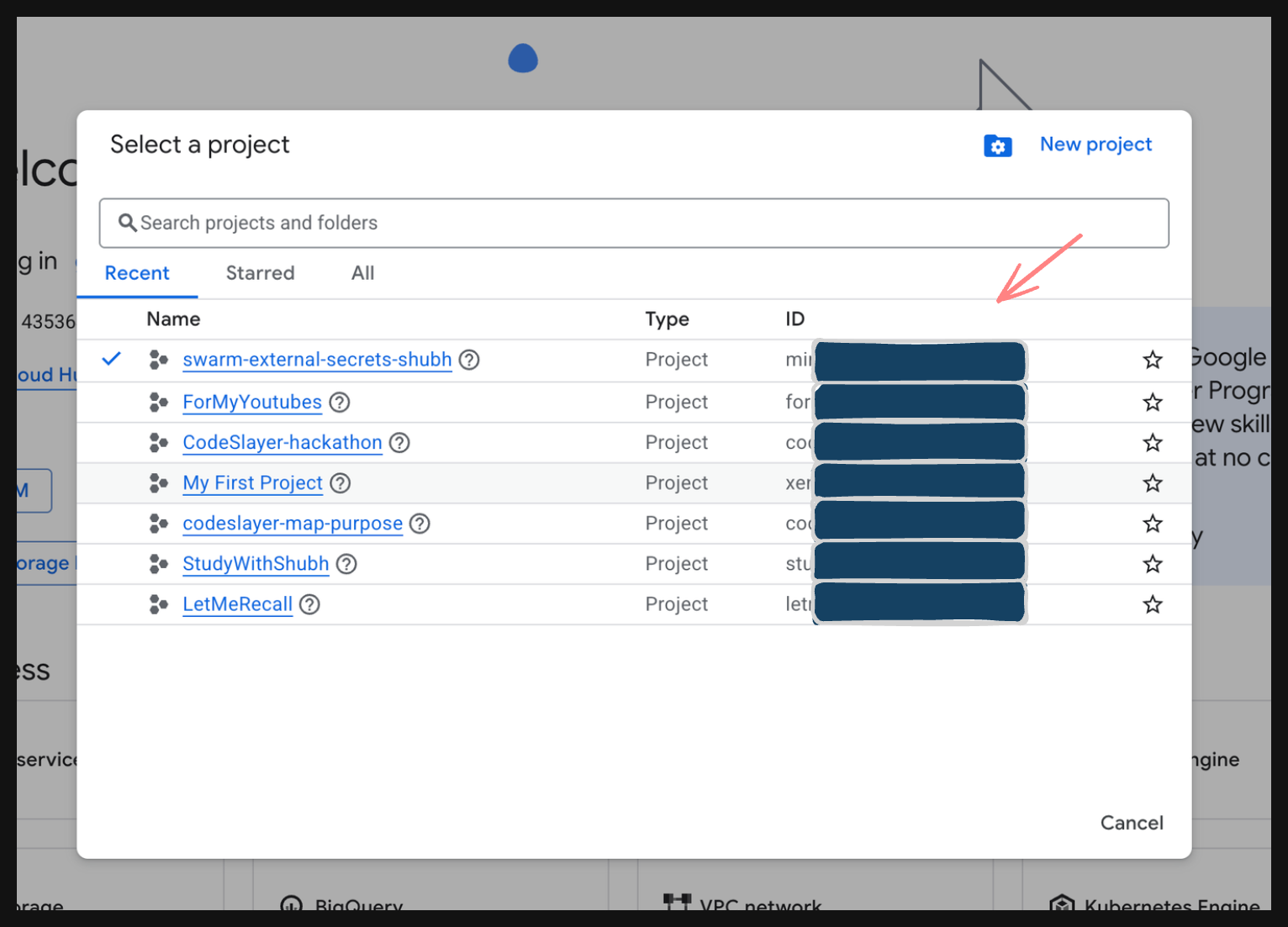

Finding your Project ID: You can find it on the GCP Home Dashboard or by clicking the project selector at the top of the console.

2. Install Go Dependencies¶

Run the following commands in your project root to pull in the required GCP libraries:

go get cloud.google.com/go/secretmanager/apiv1
go get google.golang.org/api/option
go mod tidy

3. Enable Secret Manager API¶

Before anything else, the Secret Manager API must be enabled on your GCP project.

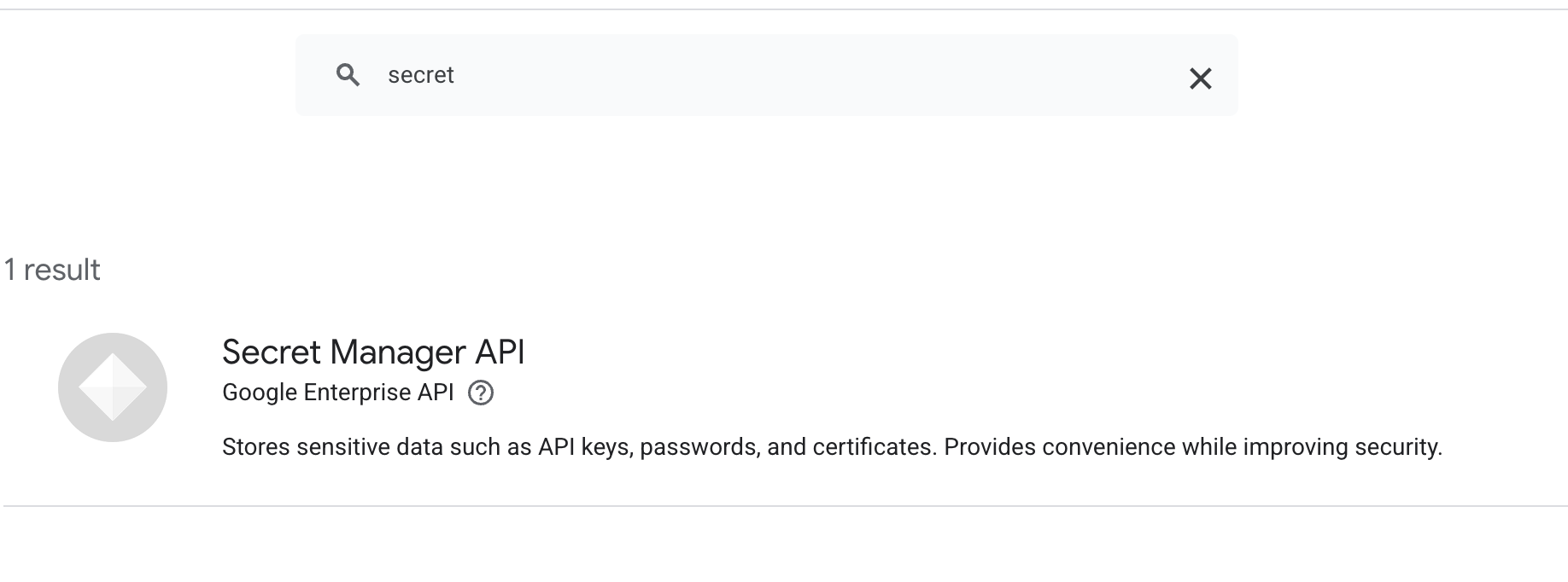

Go to console.cloud.google.com, search for Secret Manager, and enable the API. If prompted to enable billing, do so.

Enable Secret Manager API

4. GCP Project Setup¶

You need to: - Enable the API - Create a Service Account for the plugin - Grant it the correct permissions - Download a JSON key file

Choose your preferred method below.

Option A — CLI (Recommended)¶

Replace YOUR_PROJECT_ID with your actual GCP Project ID throughout.

4A.1 — Enable the Secret Manager API¶

gcloud services enable secretmanager.googleapis.com \
    --project=YOUR_PROJECT_ID

4A.2 — Create a Service Account¶

gcloud iam service-accounts create swarm-secrets-sa \
    --display-name="Swarm External Secrets GCP" \
    --project=YOUR_PROJECT_ID

4A.3 — Grant Permissions¶

# Grant read access to secrets
gcloud projects add-iam-policy-binding YOUR_PROJECT_ID \
    --member="serviceAccount:swarm-secrets-sa@YOUR_PROJECT_ID.iam.gserviceaccount.com" \
    --role="roles/secretmanager.secretAccessor"

# Grant admin access (needed for listing/managing secrets)
gcloud projects add-iam-policy-binding YOUR_PROJECT_ID \
    --member="serviceAccount:swarm-secrets-sa@YOUR_PROJECT_ID.iam.gserviceaccount.com" \
    --role="roles/secretmanager.admin"

4A.4 — Download the Key File¶

gcloud iam service-accounts keys create gcp-key.json \
    --iam-account=swarm-secrets-sa@YOUR_PROJECT_ID.iam.gserviceaccount.com

Already have gcp-key.json? If you completed the UI setup below, skip this step — you already have the key.

Option B — GCP Console UI¶

4B.1 — Create a Service Account¶

In the GCP Console, search for Service Accounts (under IAM & Admin).
Click + CREATE SERVICE ACCOUNT.
Name it docker-secrets-plugin, then click Create and Continue.
Under "Select a role", search for and select Secret Manager Secret Accessor.

⚠️ Critical: Skipping this step will result in 403 Permission Denied errors.

Click Done.

4B.2 — Download the JSON Key¶

Click on the docker-secrets-plugin service account in the list.
Go to the KEYS tab.
Click ADD KEY → Create new key.
Select JSON and click Create.
A .json file will be downloaded. Move it to your project folder and rename it to gcp-key.json.

5. Install the gcloud CLI¶

macOS / Linux:

curl https://sdk.cloud.google.com | bash

Follow the prompts and accept the permissions when asked.

After installation, initialize and log in:

gcloud init

This will open a browser to authenticate. Make sure to: - Log in with the same Google account you used to set up the GCP project. - Select the correct project that contains your secrets.

6. Create Secrets in GCP¶

Via CLI (Recommended)¶

# Create the secret
gcloud secrets create my-database-password \
    --replication-policy="automatic" \
    --project=YOUR_PROJECT_ID

# Add the initial secret version (the actual value)
echo -n '{"password":"super-secret-value-v1"}' | \
    gcloud secrets versions add my-database-password \
    --data-file=- \
    --project=YOUR_PROJECT_ID

Secret format: Values are stored as JSON objects. The key inside the JSON (e.g., "password") is what you'll reference via the gcp_field label later.

Via GCP Console UI¶

Go to Secret Manager.
Select your project from the top dropdown.
Click + CREATE SECRET.
Fill in the details:

Field	Value
Name	`my-database-password`
Secret value	`{"password":"super-secret-value-v1"}`
Replication policy	Automatic

Click CREATE SECRET.

7. Build & Install the Plugin¶

Run these commands from the root of the swarm-external-secrets project.

Step 1 — Navigate to the project directory¶

cd /path/to/swarm-external-secrets

Step 2 — Initialize Docker Swarm (if not already done)¶

docker swarm init

If you see "This node is already part of a swarm", that's fine — continue.

Step 3 — Remove any old plugin version¶

docker plugin disable swarm-external-secrets:latest --force 2>/dev/null || true
docker plugin rm swarm-external-secrets:latest --force 2>/dev/null || true

Step 4 — Build the Docker image¶

docker build -f Dockerfile -t swarm-external-secrets:temp .

Step 5 — Create the plugin rootfs directory¶

mkdir -p plugin/rootfs

Step 6 — Extract the binary into rootfs¶

# Remove any leftover container from a previous run
docker rm -f temp-container 2>/dev/null || true

# Create (but don't run) a container from the image
docker create --name temp-container swarm-external-secrets:temp

# Export the container's full filesystem into plugin/rootfs
docker export temp-container | tar -x -C plugin/rootfs

# Clean up
docker rm temp-container
docker rmi swarm-external-secrets:temp

Step 7 — Copy the plugin config¶

cp config.json plugin/

Step 8 — Create the Docker plugin¶

docker plugin create swarm-external-secrets:latest plugin/

Step 9 — Clean up the build directory¶

rm -rf plugin/

8. Configure & Enable the Plugin¶

Step 1 — Load your GCP key as an environment variable¶

Because the plugin runs in an isolated container, it cannot directly access files on your host. Instead, pass the key contents inline:

GCP_KEY_CONTENT=$(cat gcp-key.json)

Step 2 — Disable the plugin temporarily (before reconfiguring)¶

docker plugin disable swarm-external-secrets:latest --force 2>/dev/null || true

Step 3 — Apply GCP configuration¶

docker plugin set swarm-external-secrets:latest \
    SECRETS_PROVIDER="gcp" \
    GCP_PROJECT_ID="YOUR_PROJECT_ID" \
    GCP_CREDENTIALS_JSON="${GCP_KEY_CONTENT}" \
    ENABLE_ROTATION="true" \
    ROTATION_INTERVAL="30s" \
    ENABLE_MONITORING="false"

Note: GCP_CREDENTIALS_JSON embeds the key file contents directly, so you don't need to worry about file paths inside the container.

Step 4 — Set permissions and enable the plugin¶

docker plugin set swarm-external-secrets:latest gid=0 uid=0
docker plugin enable swarm-external-secrets:latest

Step 5 — Verify the plugin is running¶

docker plugin ls

Expected output:

ID             NAME                            DESCRIPTION   ENABLED
abc123         swarm-external-secrets:latest   ...           true

9. Deploy a Stack Using GCP Secrets¶

Step 1 — Review the docker-compose.yml¶

The docker-compose.yml in the project root is pre-configured with GCP secret labels:

secrets:
  mysql_root_password:
    driver: swarm-external-secrets:latest
    labels:
      gcp_secret_name: "projects/YOUR_PROJECT_ID/secrets/mysql-root-password"
      gcp_field: "root_password"

⚠️ Important: Replace YOUR_PROJECT_ID with your actual project ID. Also make sure the referenced GCP secrets exist and contain JSON values with the matching field key (e.g., {"root_password":"your-value"}).

Step 2 — Create the required GCP secrets¶

# --- mysql-root-password ---
gcloud secrets create mysql-root-password \
    --replication-policy="automatic" \
    --project=YOUR_PROJECT_ID

echo -n '{"root_password":"my-root-pass-123"}' | \
    gcloud secrets versions add mysql-root-password \
    --data-file=- \
    --project=YOUR_PROJECT_ID

# --- mysql-user-password ---
gcloud secrets create mysql-user-password \
    --replication-policy="automatic" \
    --project=YOUR_PROJECT_ID

echo -n '{"user_password":"my-user-pass-456"}' | \
    gcloud secrets versions add mysql-user-password \
    --data-file=- \
    --project=YOUR_PROJECT_ID

Step 3 — Deploy the stack¶

docker stack deploy -c docker-compose.yml myapp

Step 4 — Verify the deployment¶

# Wait a few seconds for services to start
sleep 10

# Check service status
docker service ls

# Check service logs
docker service logs myapp_busybox --tail 20

Step 5 — Read secrets directly from a running container¶

# Get the task ID of the running container
TASK_ID=$(docker service ps myapp_busybox \
    --filter "desired-state=running" \
    --format '{{.ID}}' | head -1)

# Resolve the actual container ID
CONTAINER_ID=$(docker inspect "$TASK_ID" \
    --format '{{.Status.ContainerStatus.ContainerID}}')

# Read the secrets
echo "--- mysql_root_password ---"
docker exec "$CONTAINER_ID" cat /run/secrets/mysql_root_password

echo ""
echo "--- mysql_password ---"
docker exec "$CONTAINER_ID" cat /run/secrets/mysql_password

10. Updating Secrets (Rotation)¶

The plugin always reads the latest version of a secret. Adding a new version automatically triggers rotation on the next polling interval.

Option A — Update via CLI¶

echo -n '{"root_password":"UPDATED-root-pass-789"}' | \
    gcloud secrets versions add mysql-root-password \
    --data-file=- \
    --project=YOUR_PROJECT_ID

Option B — Update via GCP Console UI¶

Go to Secret Manager.
Click on the secret name (e.g., mysql-root-password).
Click + NEW VERSION.
Enter the new value: {"root_password":"UPDATED-root-pass-789"}
Click ADD NEW VERSION.

Verify the Plugin Picked Up the Change¶

After updating a secret, wait for the rotation interval (default: 30s) and then check the logs:

sleep 35
docker service logs myapp_busybox --tail 10

You should see the plugin logging that it fetched and applied the updated secret value.

Tip: Both the CLI and Console UI methods create a new version of the secret — they are functionally identical. The plugin always resolves to the latest active version automatically.
